Steps to Install Openstack on CentOS7 - Part 1
Openstack Installaction and  Configuration Mitaka5 CentOS7  openstack,  mitaka5, openstack keystone, openstack instance, openstack nova, openstack neutron, network configuration,openstack tutorial, openstack tutorial for beginner,   lokesh carpenter, lokesh, linuxtopic, linux topic, vm,
Hostname : openstack.linuxtopic.com

OS : CentOS 7 Minimal ( Fresh Installation )

IP Address : 172.17.20.100

Hardware : Core i3 with 4GB Ram

Step 1:

Check Release, Hostname and IP Address
cat /etc/redhat-release

uname -a

ip a


echo "172.17.20.100 openstack.linuxtopic.com" >> /etc/hosts


Step 2:

Disable NetworkManager , Firewalld
systemctl stop firewalld NetworkManager

systemctl disable firewalld NetworkManager
Disable SELinux
setenforce 0 # Temporary

OR
sed -i s/^SELINUX=.*$/SELINUX=permissive/ /etc/selinux/config # Permanent
setenforce 0
Step 3:
Update System and Install RDO ( RPM Distribution of Openstack ) Package

yum update -y

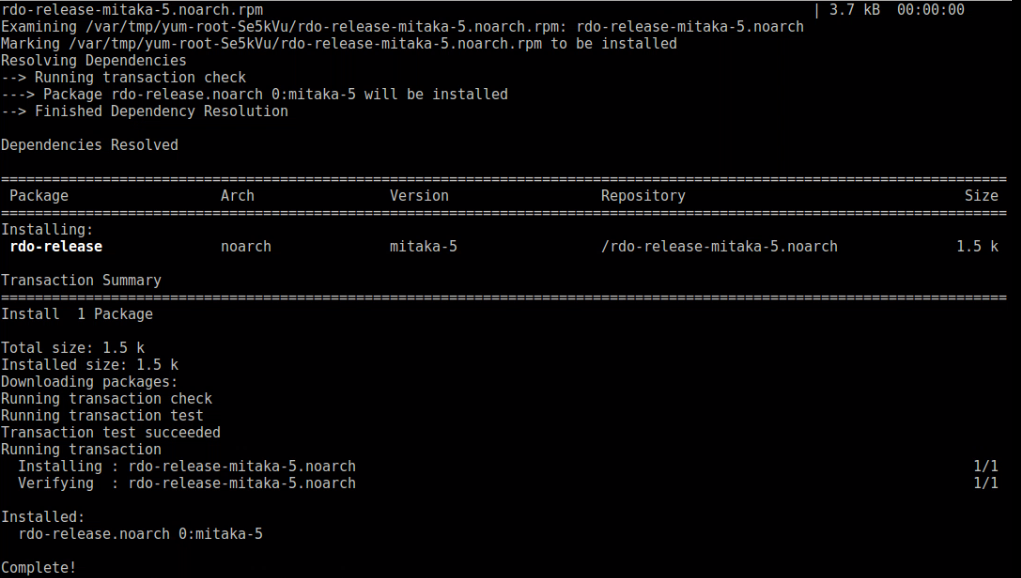

yum -y install https://repos.fedorapeople.org/repos/openstack/openstack-mitaka/rdo-release-mitaka-5.noarch.rpm
                                                          OR


Download from official site & install

https://repos.fedorapeople.org/repos/openstack/”


Step 4:

Install Packstack : It’s utility that uses Puppet modules to deploy various parts of OpenStack

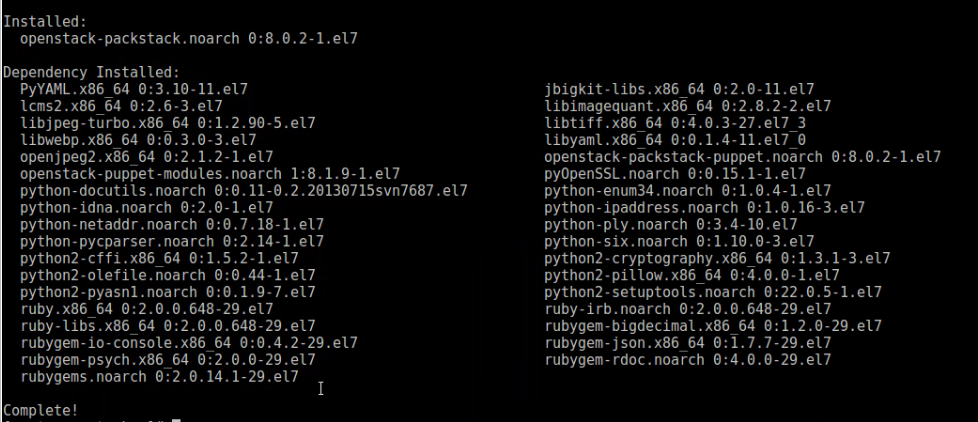

yum -y install openstack-packstack

Step 5:

Generate Packstack Answer File OR command used direct packstack

packstack --gen-answer-file=opnstacktest-answere-file.txt

vi opnstacktest-answere-file.txt
Change:

CONFIG_DEFAULT_PASSWORD=server

# Specify 'y' to install OpenStack Object Storage (swift). ['y', 'n']
CONFIG_SWIFT_INSTALL=n

# Specify 'y' to install OpenStack Metering (ceilometer). ['y', 'n']
CONFIG_CEILOMETER_INSTALL=n

# Specify 'y' to install OpenStack Telemetry Alarming (Aodh). Note
# Aodh requires Ceilometer to be installed as well. ['y', 'n']
CONFIG_AODH_INSTALL=n

# Specify 'y' to install Nagios to monitor OpenStack hosts. Nagios
# provides additional tools for monitoring the OpenStack environment.
# ['y', 'n']
CONFIG_NAGIOS_INSTALL=n

# Server on which to install OpenStack services specific to the
# controller role (for example, API servers or dashboard).
CONFIG_CONTROLLER_HOST=172.17.20.100

# List the servers on which to install the Compute service.
CONFIG_COMPUTE_HOSTS=172.17.20.100

# List of servers on which to install the network service such as
# Compute networking (nova network) or OpenStack Networking (neutron).
CONFIG_NETWORK_HOSTS=172.17.20.100

# Specify 'y' to provision for demo usage and testing. ['y', 'n']
CONFIG_PROVISION_DEMO=n

Save & Exit

Step 5:

Install Openstack Using Answer File

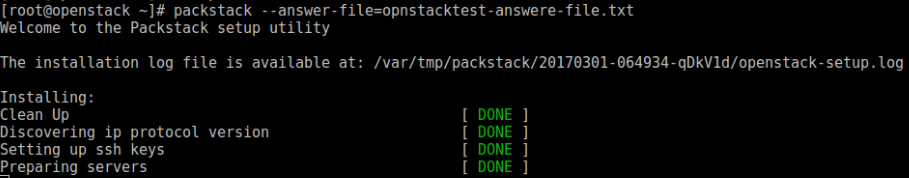

packstack --answer-file opnstacktest-answere-file.txt

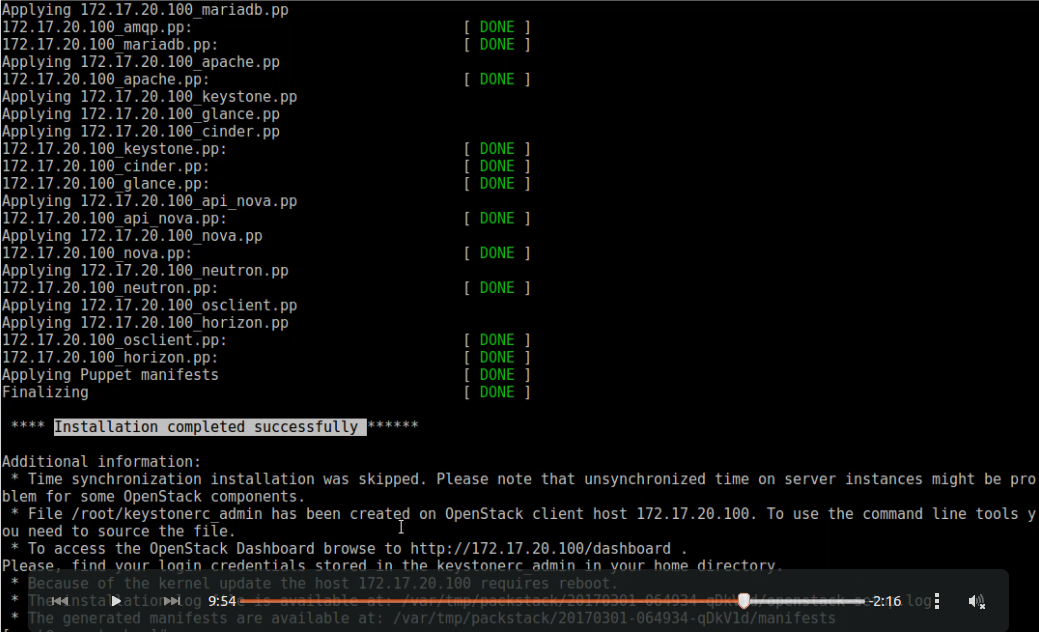

OpenStack Has been Successfully Install

OpenStack Related Service

Services on Controller node right after OpenStack Mitaka installation:

systemctl list-unit-files | grep openstack

Services on Network node right after OpenStack Mitaka installation:

systemctl list-unit-files | grep openstack

systemctl list-unit-files | grep neutron

systemctl list-unit-files | grep ovs


Services on Compute node right after OpenStack Mitaka installation:

systemctl list-unit-files | grep openstack

systemctl list-unit-files | grep neutron

systemctl list-unit-files | grep ovs



OVS configuration on Compute node right after OpenStack Mitaka installation:

ovs-vsctl show

Verify GlusterFS Storage mount point (Controller node only):

df -hT

## Controller

systemctl status httpd.service

systemctl status memcached.service

systemctl status mariadb

systemctl status ntpd

## Nova

systemctl status openstack-nova-api.service

systemctl status openstack-nova-cert.service

systemctl status openstack-nova-consoleauth.service

systemctl status openstack-nova-scheduler.service

systemctl status openstack-nova-conductor.service


##Neutron##-- Networking

systemctl status neutron-server.service

systemctl status neutron-openvswitch-agent.service

systemctl status neutron-l3-agent.service

systemctl status neutron-dhcp-agent.service neutron-metadata-agent.service

systemctl status openvswitch.service

systemctl status neutron-openvswitch-agent.service

## Glance -- Image Service

systemctl status openstack-glance-api.service

systemctl status openstack-glance-registry.service

## Horizon -- Openstack Dashboard

systemctl status httpd.service

systemctl status memcached.service

Part 1: OpenStack Mitaka 5 installation in CentOS 7

Part 2: Network Configuration in OpenStack

Part 3: Network & Router configuration using Dashboard

Part 4: Create Project, Image, Volume & Instance

Part 5: Instance Snapshot & Boot from Volume

Part 6: Autostart OpenStack Instance Setting

Part 7: Extend Volume Size
