Step 1:

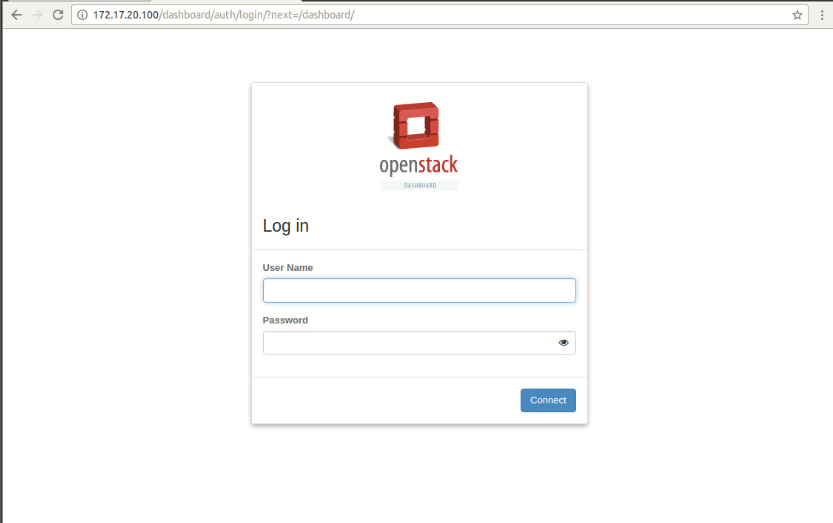

Open Dashboard: Login

User = AdminPwd = 1661bfc512194d92 # see keystonerc_admin

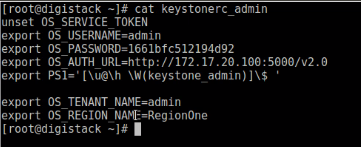

cat /root/keystonerc_admin
http://172.17.20.100/
Openstack Project, Image, Flavor, Instance Configuration CentOS7 Part 3 openstack,  mitaka5, keystone, instance, nova, neutron, network configuration, lokesh carpenter, lokesh, linuxtopic, linux topic, vm,

Project Window:

Openstack Project, Image, Flavor, Instance Configuration CentOS7 Part 3 openstack,  mitaka5, keystone, instance, nova, neutron, network configuration, lokesh carpenter, lokesh, linuxtopic, linux topic, vm,

Step 2:

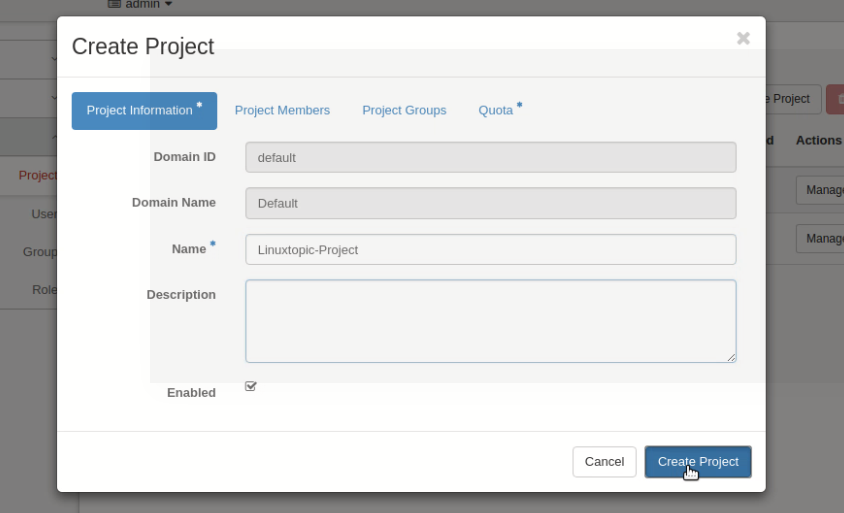

Press “Create Project”

Type Project Name and Press “Create”



After successfully “Create Project”


Step 3 :

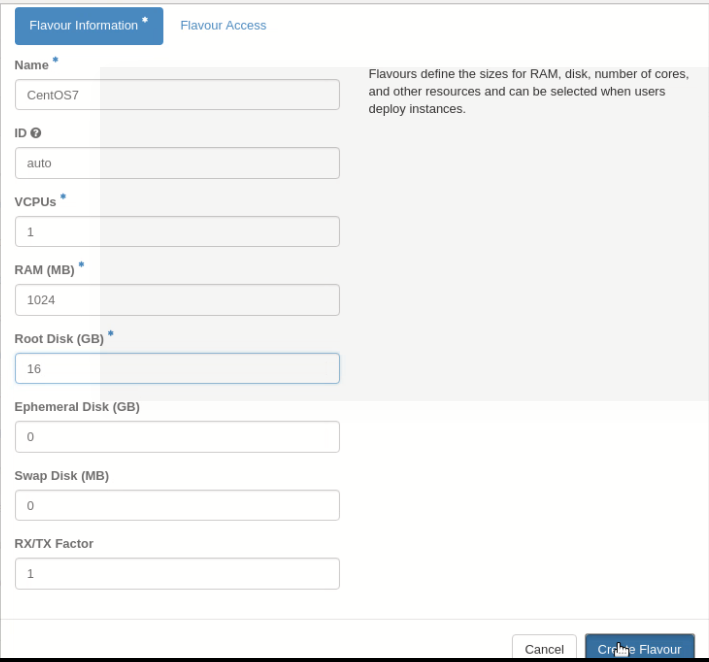

Create Flavours :

Go to → Admin → Flavours → press “Create Flavour” Button


Flavour Name = CentOS7 # choose according your project
ID = auto
VCPUs = 1             # According your project
RAM    = 1024       # According your project
ROOT Disk =         # According your project

Press “Create Flavour”


Step 4:

Allocate Floating IP’s to Project :

Go to Project → Compute → Access & Security

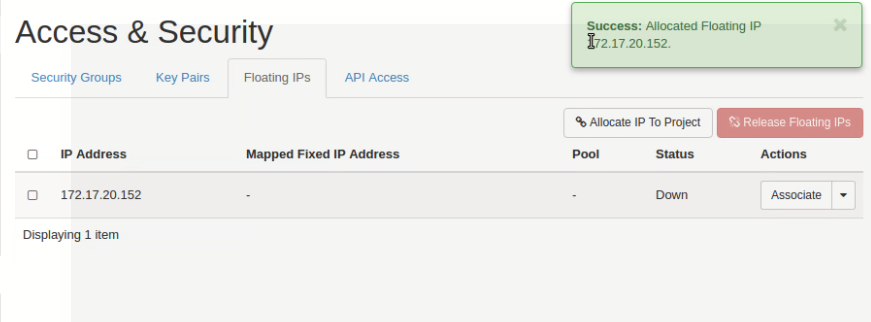

Click on  “Floating IP’s” tab and Press “Allocate IP’s to Project”




Press “Allocate IP” Button


Step 5:

Create Security Group

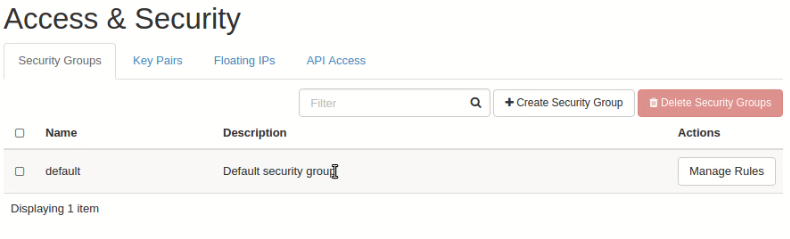

Click on  “Security Groups” tab


Press “Manage Rules”


Press “Add Rule”

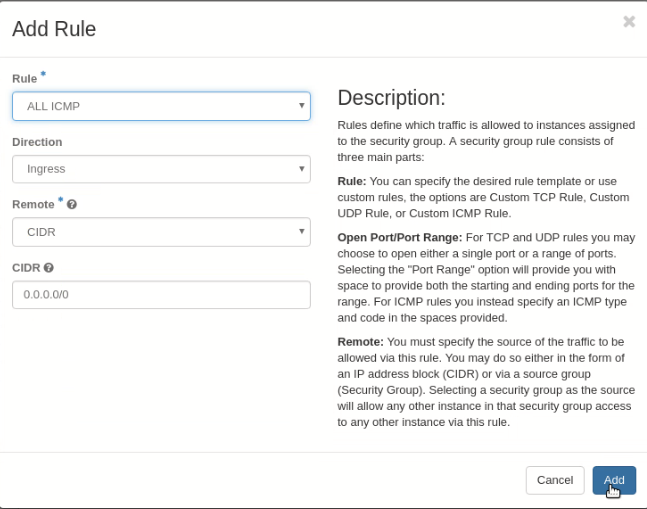

Rule = All ICMP

Direction = Ingress


Press “Add Rule”

Rule = All ICMP

Direction = Egress

Press “Add Rule”

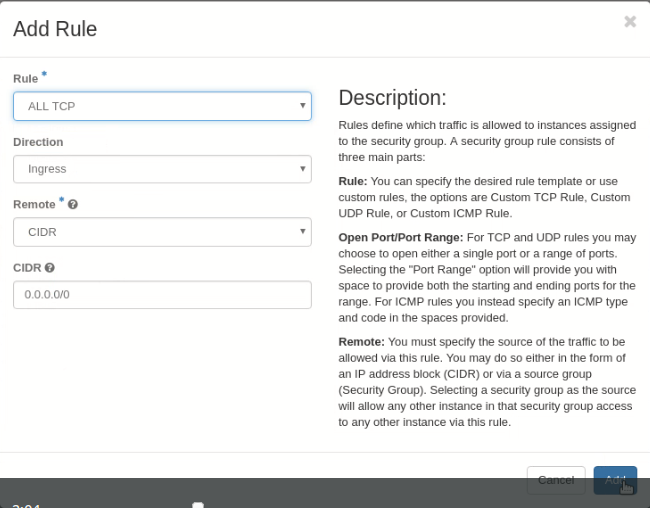

Rule = All TCP

Direction = Ingress


Press “ Add Rule”

Rule = All TCP

Direction = Egress


Final Output of Access & Security



Step 6:

Create Image :

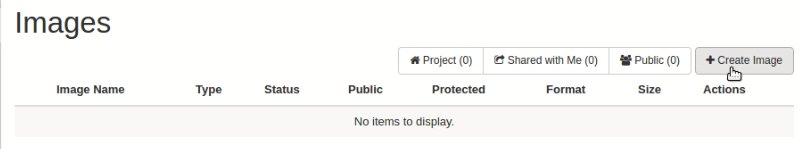

Go to Project → Compute → Images

Press “Create Image”

Name* > CentOS7                           # Image Name

Description >                                   # Image Desctiption

Image Source > Image                     # Select Image Source

Image File > *.iso                            # Select Your Image File

Minimum DisK > 16 GB                  # Type According to your Project

Minimum ram > 1024 MB               # Type According to your Project

Public > yes                                     # tick on checkbox

Press “Create Image”

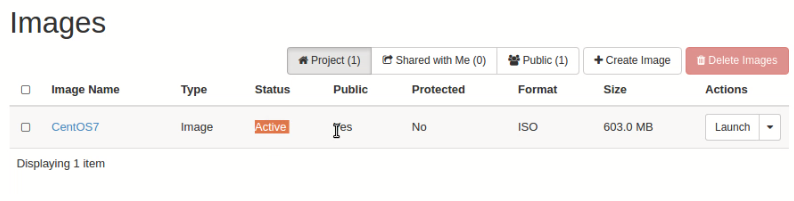

Image Successfully Created


Step 7:

Create Volumes :

Go to Project → Compute → Volumes

Press Create Volume”


Step 8:

Launch Instance:

Go to Project → Compute → Instances
Press “Launch Instance”

Instance Name* > CentOS7 # Type Instance Name

Availability Zone > nova # Select Zone

Count* > 1 # Type Count


Press “Next” for Select Source

Select Boot Source* > Image

Available > CentOS7
           ( press “+” button to allocated Source and “–” button to remove)

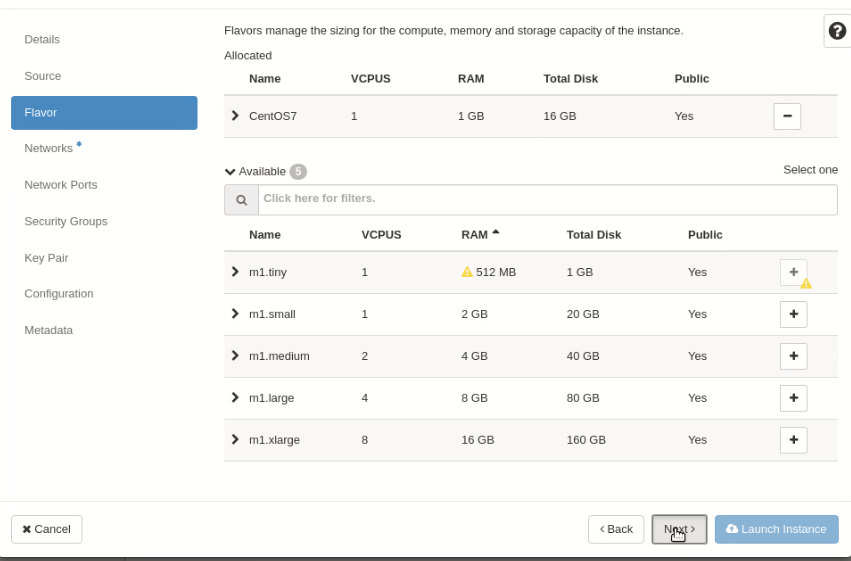

Press “Next” for Select Flavor

Available                   > CentOS7  ( press “+” button to allocated Source and “–” button to remove)




Press “Next” for Select Networks

Available > linuxtopic-external
                > linuxtopoic-internal ( press “+” button to allocated Source and “–” button to remove)


Press “Next” and Select “Security Groups”

Available                   > default  ( press “+” button to allocated Source and “–” button to remove)



Now Press “Launch Instance”


Step 9:

Attach Volumes :

Go to Project → Compute → Volumes

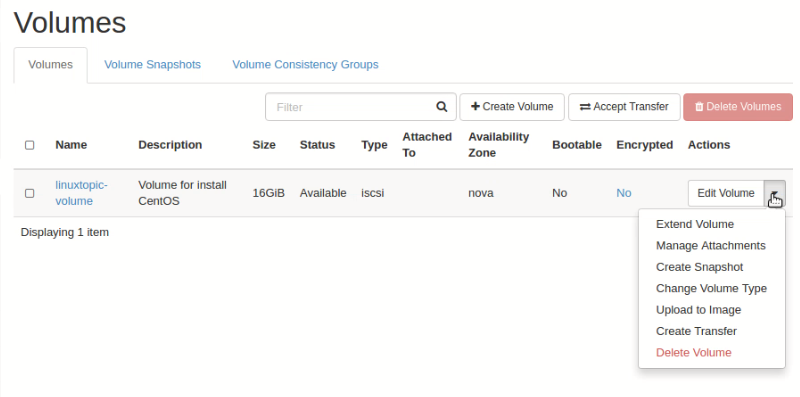

Expand Menu of “linuxtopic-volume” and Select “Manage Attachment”

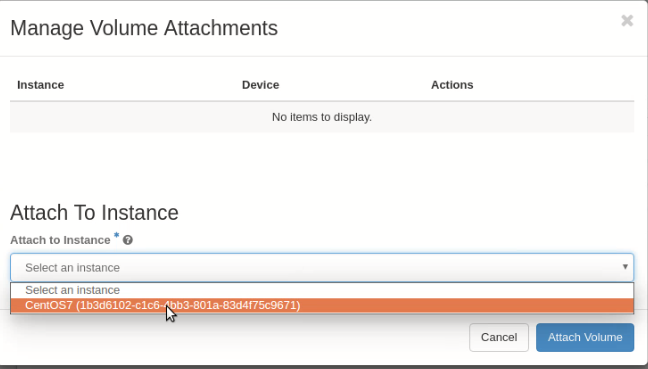

Select Instance “Attach To Instance” from Drug down Menu



Press “Attach Volume”


Step 10:

Restart Instance :

Go to Project → Compute → Instances

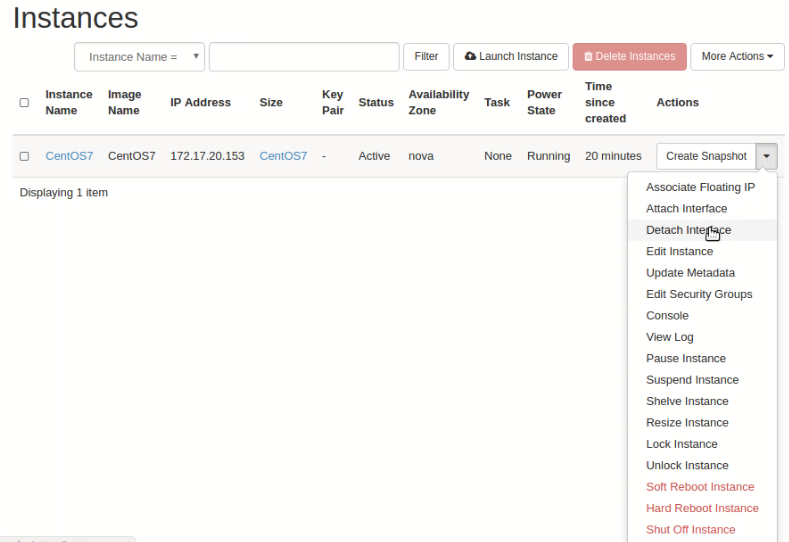

Expand Menu → Press “Hard Reboot Instance” and Confirm





Step 10:

Now open Console from Expand Instance Menu OR Use VNC Client to Install CentOS 7
