Latest OpenStack Queens Installation tutorial 2018

Latest OpenStack Queens Installation tutorial 2018

Steps to Install Openstack on CentOS7 - Part 1
Hostname : openstack.linuxtopic.com

OS : CentOS 7 Minimal ( Fresh Installation )

IP Address : 172.17.20.100

Hardware : Core i3 with 4GB Ram


Step 1:

Check Release, Hostname and IP Address

cat /etc/redhat-release
uname -a
ip a



echo "172.17.20.100 openstack.linuxtopic.com" >> /etc/hosts
Step 2:

Disable NetworkManager , Firewalld
systemctl stop firewalld NetworkManager

systemctl disable firewalld NetworkManager
Disable SELinux
setenforce 0 # Temporary

OR
sed -i s/^SELINUX=.*$/SELINUX=permissive/ /etc/selinux/config # Permanent
setenforce 0
Video Tutorial English :



Video Tutorial Hindi :


Step 3:
Update System and Install RDO ( RPM Distribution of Openstack ) Package

yum update -y
yum install centos-release-openstack-queens


openstack, neutron, nova, community, openstack queens documentation, openstack queens centos, openstack queens, openstack queens installation, openstack queens single node installation, openstack queens centos 7, openstack installation, install openstack, install openstack centos 7, openstack installation on centos step by step, openstack tutorial, linux, openstack, queens, packstack
yum upgrade
Optional : Download from official site & install

https://repos.fedorapeople.org/repos/openstack/”

Step 4:

Install Packstack : It’s utility that uses Puppet modules to deploy various parts of OpenStack
yum -y install openstack-packstack
Step 5:

Generate Packstack Answer File OR command used direct packstack

packstack --gen-answer-file=opnstacktest-answere-file.txt

vi opnstacktest-answere-file.txt
Change:

CONFIG_DEFAULT_PASSWORD=server

# Specify 'y' to install OpenStack Object Storage (swift). ['y', 'n']
CONFIG_SWIFT_INSTALL=n

# Specify 'y' to install OpenStack Metering (ceilometer). ['y', 'n']
CONFIG_CEILOMETER_INSTALL=n

# Specify 'y' to install OpenStack Telemetry Alarming (Aodh). Note
# Aodh requires Ceilometer to be installed as well. ['y', 'n']
CONFIG_AODH_INSTALL=n

# Specify 'y' to install Nagios to monitor OpenStack hosts. Nagios
# provides additional tools for monitoring the OpenStack environment.
# ['y', 'n']
CONFIG_NAGIOS_INSTALL=n

# Server on which to install OpenStack services specific to the
# controller role (for example, API servers or dashboard).
CONFIG_CONTROLLER_HOST=172.17.20.100

# List the servers on which to install the Compute service.
CONFIG_COMPUTE_HOSTS=172.17.20.100

# List of servers on which to install the network service such as
# Compute networking (nova network) or OpenStack Networking (neutron).
CONFIG_NETWORK_HOSTS=172.17.20.100

# Specify 'y' to provision for demo usage and testing. ['y', 'n']
CONFIG_PROVISION_DEMO=n

Save & Exit

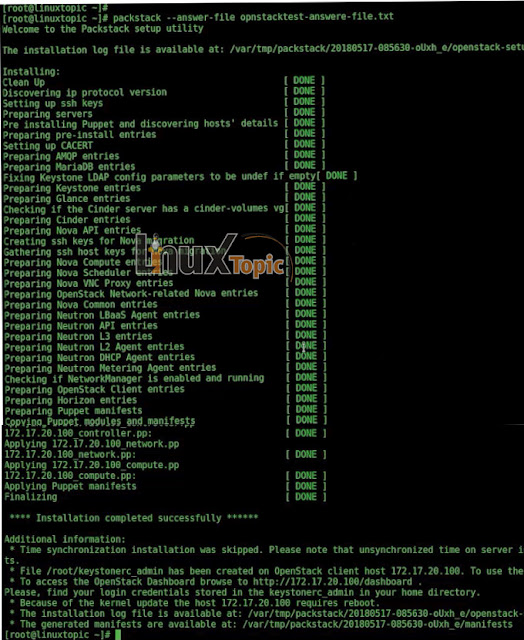

Step 5:

Install Openstack Using Answer File

packstack --answer-file opnstacktest-answere-file.txt
openstack, neutron, nova, community, openstack queens documentation, openstack queens centos, openstack queens, openstack queens installation, openstack queens single node installation, openstack queens centos 7, openstack installation, install openstack, install openstack centos 7, openstack installation on centos step by step, openstack tutorial, linux, openstack, queens, packstack

OpenStack Has been Successfully Install


OpenStack Related Service

Services on Controller node right after OpenStack Mitaka installation:

systemctl list-unit-files | grep openstack

Services on Network node right after OpenStack Mitaka installation:

systemctl list-unit-files | grep openstack

systemctl list-unit-files | grep neutron

systemctl list-unit-files | grep ovs


Services on Compute node right after OpenStack Mitaka installation:

systemctl list-unit-files | grep openstack

systemctl list-unit-files | grep neutron

systemctl list-unit-files | grep ovs



OVS configuration on Compute node right after OpenStack Mitaka installation:

ovs-vsctl show

Verify GlusterFS Storage mount point (Controller node only):

df -hT

## Controller

systemctl status httpd.service

systemctl status memcached.service

systemctl status mariadb

systemctl status ntpd

## Nova

systemctl status openstack-nova-api.service

systemctl status openstack-nova-cert.service

systemctl status openstack-nova-consoleauth.service

systemctl status openstack-nova-scheduler.service

systemctl status openstack-nova-conductor.service


##Neutron##-- Networking

systemctl status neutron-server.service

systemctl status neutron-openvswitch-agent.service

systemctl status neutron-l3-agent.service

systemctl status neutron-dhcp-agent.service neutron-metadata-agent.service

systemctl status openvswitch.service

systemctl status neutron-openvswitch-agent.service

## Glance -- Image Service

systemctl status openstack-glance-api.service

systemctl status openstack-glance-registry.service

## Horizon -- Openstack Dashboard

systemctl status httpd.service

systemctl status memcached.service
