FreeRadius-Configuration-with-DaloRadius-CentOS 7

FreeRadius-Configuration-with-DaloRadius-CentOS 7


freeradius configuration, freeradius installation guide, freeradius accounting configuration, open source radius server, freeradius, gui  daloradius, freeradius, full freeradius configuration, radius server, radius server configuration,






Q. How to Install FreeRadius on CentOS 7 with DaloRadius ?

Q. Step by Step Free Radius Server Configuration on Linux ?


Q. OpenSource Radius server



FreeRADIUS is the most popular open source & most widely deployed RADIUS server in the world. It supports all common authentication protocols. It’s Used PHP-based web user administration tool called dialupadmin.

FreeRADIUS supports LDAP, MySQL, PostgreSQL, Oracle, and many other databases. Also supports all popular EAP authentication types, including PEAP and
EAP-TTLS.

Step 1:

Disable SELinux
setenforce 0

vi /etc/selinux/config
# SELINUX= can take one of these three values:
#     enforcing - SELinux security policy is enforced.
#     permissive - SELinux prints warnings instead of enforcing.
#     disabled - No SELinux policy is loaded.
SELINUX=disabled


Step 2:

Install MariaDB/MySQL

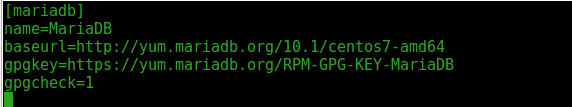

vi /etc/yum.repos.d/MariaDB.repo

[mariadb]
name=MariaDB
baseurl=http://yum.mariadb.org/10.1/centos7-amd64
gpgkey=https://yum.mariadb.org/RPM-GPG-KEY-MariaDB
gpgcheck=1


Step 3:

Update Server & Install Required Package

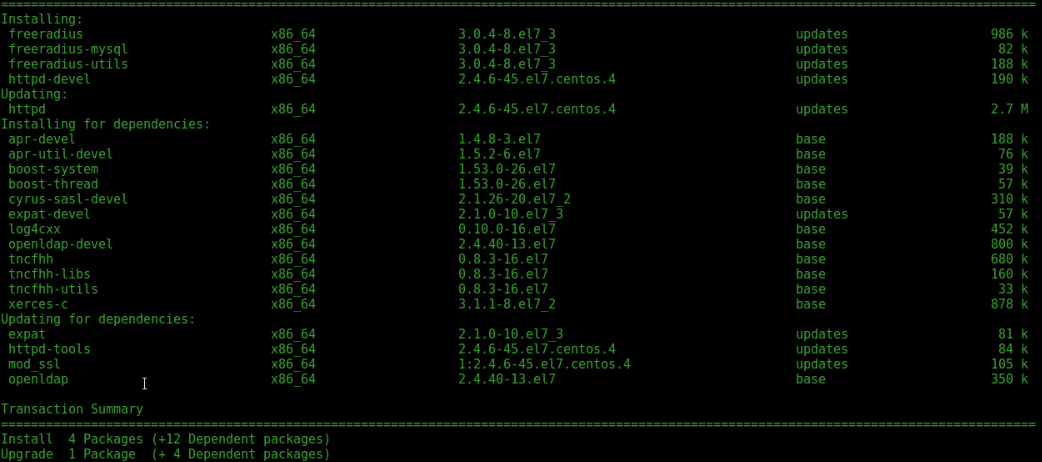

yum update -y

yum -y install freeradius freeradius-utils freeradius-mysql httpd httpd-devel mariadb-server mariadb


Step 4:

Enable FreeRadius, httpd & Mariadb
systemctl enable radiusd.service

systemctl enable httpd

systemctl enable mariadb
Start Service
systemctl start httpd

systemctl start mariadb
Step 5:

Setup MariaDB and set ROOT password

mysql_secure_installation

Configure database :
mysql -u root -p

CREATE DATABASE radius

GRANT ALL ON radius.* TO radius@localhost IDENTIFIED BY "radiuspassword";

FLUSH PRIVILEGES;

\q

Import Database
mysql -u root -p radius < /etc/raddb/mods-config/sql/main/mysql/schema.sql
Create a Soft Link for SQL:
ln -s /etc/raddb/mods-available/sql /etc/raddb/mods-enabled/
Step 6 :

Install PHP 7
yum -y install http://rpms.famillecollet.com/enterprise/remi-release-7.rpm

vi /etc/yum.repos.d/remi-php71.repo
[remi-php71]
name=Remi's PHP 7.1 RPM repository for Enterprise Linux 7 - $basearch
#baseurl=http://rpms.remirepo.net/enterprise/7/php71/$basearch/
mirrorlist=http://rpms.remirepo.net/enterprise/7/php71/mirror
enabled=1
gpgcheck=1
gpgkey=file:///etc/pki/rpm-gpg/RPM-GPG-KEY-remi

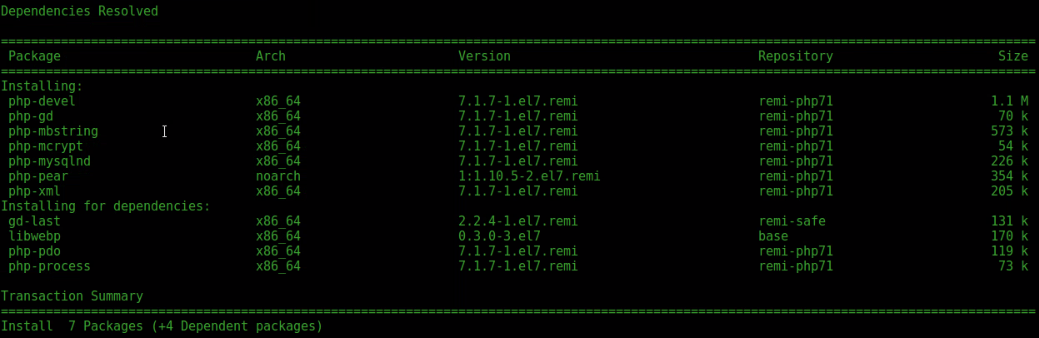

yum -y install php mod_php php-cli php-mysqlnd php-devel php-gd php-mcrypt php-mbstring php-xml php-pear


pear install DB

apachectl restart

Step 7:

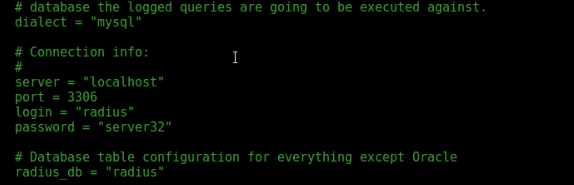

configure the SQL module and change the database connection:
vi /etc/raddb/mods-available/sql
sql {
driver = "rlm_sql_mysql"
dialect = "mysql"


# Connection info:

server = "localhost"
port = 3306
login = "radius"
password = "radiuspassword"


# Database table configuration for everything except Oracle

radius_db = "radius"
}

# Set to ‘yes’ to read radius clients from the database (‘nas’ table)
# Clients will ONLY be read on server startup.

read_clients = yes

# Table to keep radius client info

client_table = “nas”


ln -sf /etc/raddb/mods-available/sql /etc/raddb/mods-enabled/
Change the group for the SQL folder to radiusd:
chgrp -h radiusd /etc/raddb/mods-enabled/sql
Installing Daloradius:
cd /tmp

wget https://github.com/lirantal/daloradius/archive/master.zip

unzip master.zip

mv daloradius-master/ daloradius

cd daloradius
Step 8:

Import Daloradius MySQL:
mysql -u root -p radius < contrib/db/fr2-mysql-daloradius-and-freeradius.sql

mysql -u root -p radius < contrib/db/mysql-daloradius.sql
cd ..

mv daloradius /var/www/html

Step 09:

change permissions for httpd:
chown -R apache:apache /var/www/html/daloradius/

chmod 664 /var/www/html/daloradius/library/daloradius.conf.php
Step 10:

Modify configuration for MySQL:

vi /var/www/html/daloradius/library/daloradius.conf.php

CONFIG_DB_USER
CONFIG_DB_PASS
CONFIG_DB_NAME


Step 11:

To make sure everything works restart all services:
systemctl restart radiusd.service

systemctl restart mariadb.service

systemctl restart httpd




Step 12:

Allow Port in Firewall
firewall-cmd --zone=public --add-service=radius --permanent

firewall-cmd –reload
Step 13:

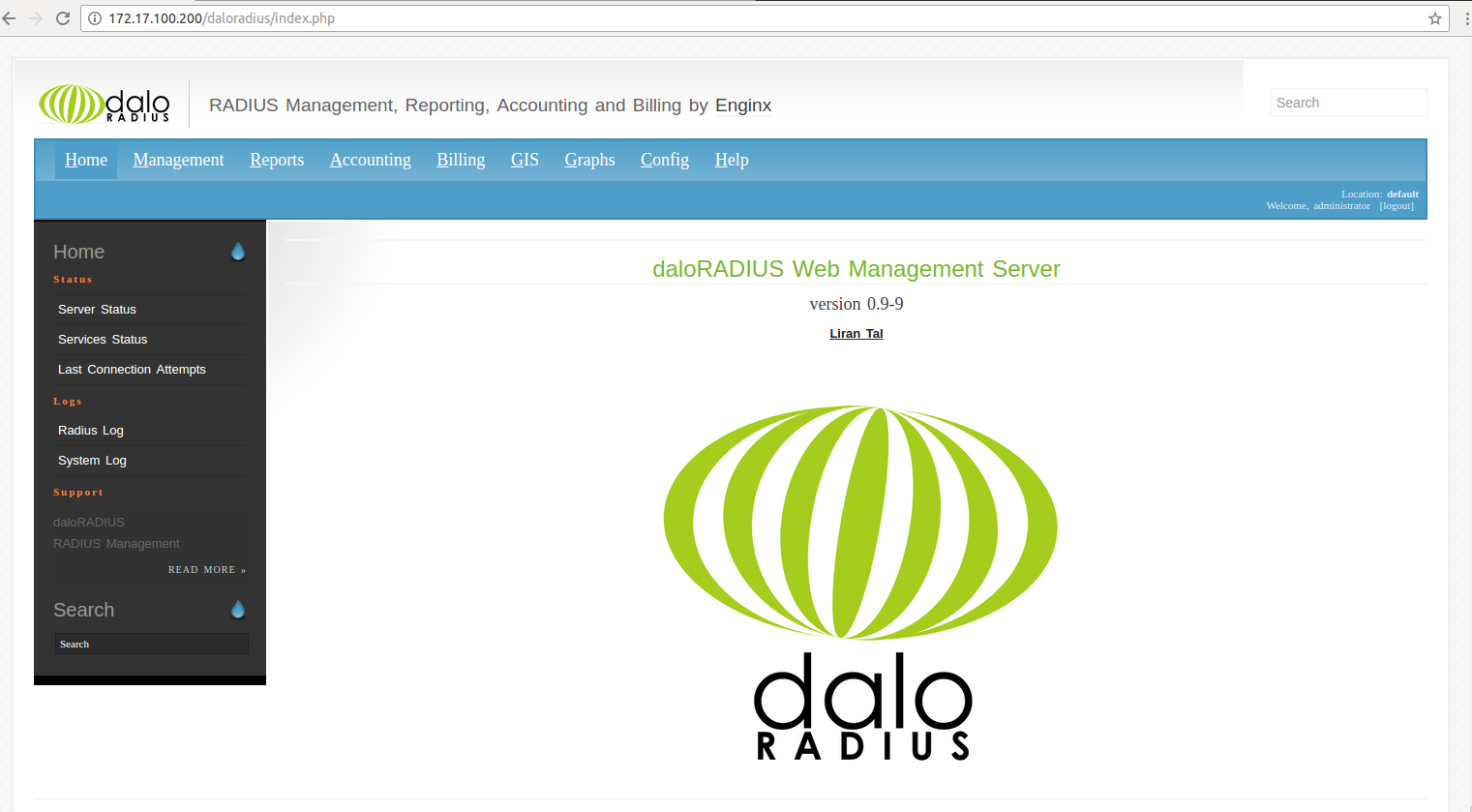

Access the web interface:


Default Login:
User: administrator
Pass: radius

freeradius configuration, freeradius installation guide, freeradius accounting configuration, open source radius server, freeradius, gui  daloradius, freeradius, full freeradius configuration, radius server, radius server configuration,


Create user :

Management ---> New User



User        lokesh
PWD        server32

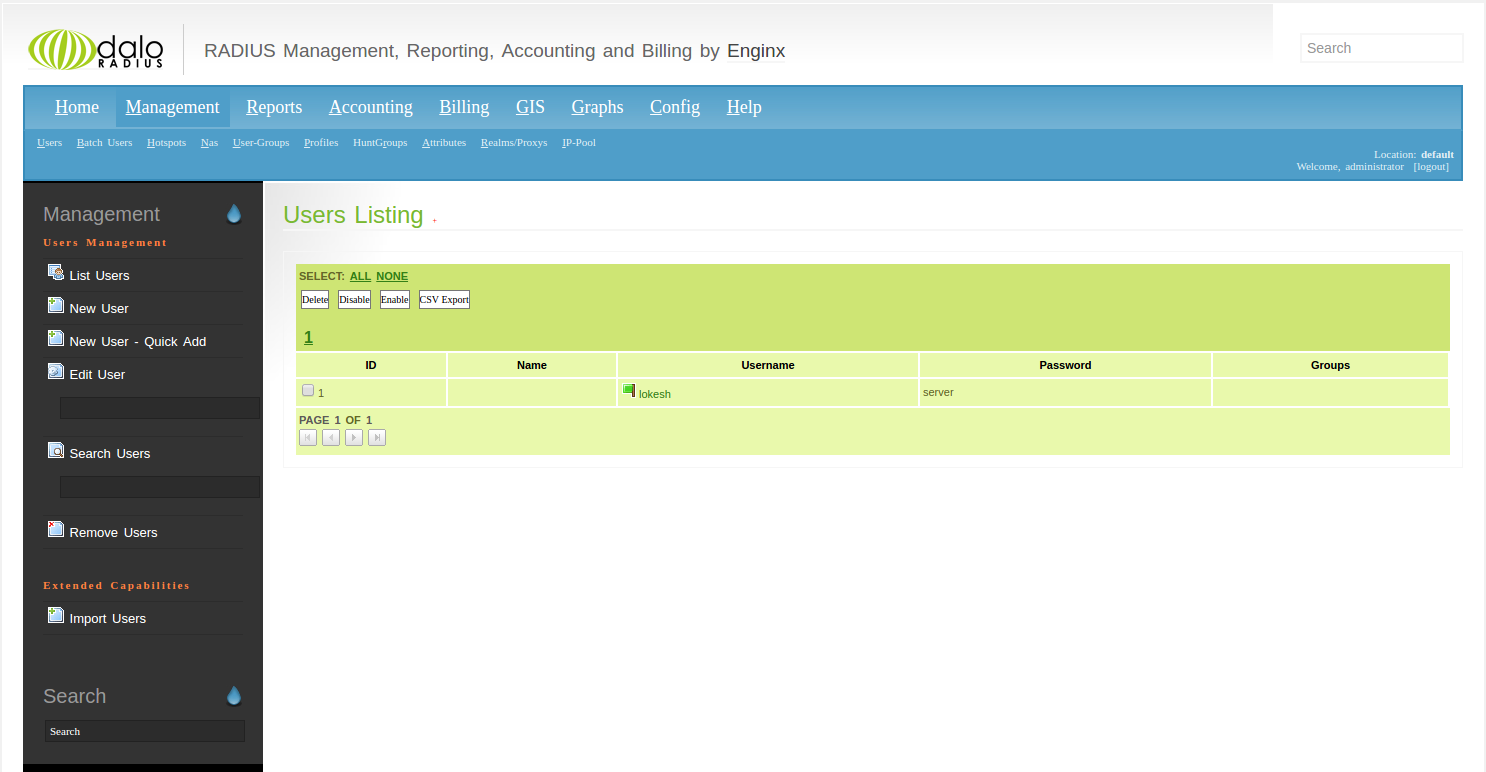

List User :


Step 14:

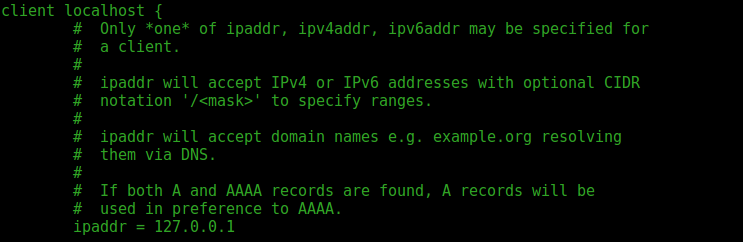

Define Client:
vi /etc/raddb/clients.conf
client NAME {
 ipaddr = IPADDRESS
 secret = SECRET
}

freeradius configuration, freeradius installation guide, freeradius accounting configuration, open source radius server, freeradius, gui  daloradius, freeradius, full freeradius configuration, radius server, radius server configuration,

Testing
radtest lokesh password localhost 0 server32

Here :
radtest     = command for testing
lokesh     = User
password    = User password
server32    = secret key


Note: we will run Radius in debug mode to make sure it runs correctly:
radiusd -X
Error 1:
Failed binding to authentication address * port 1812: Address already in use
/etc/freeradius/radiusd.conf[240]: Error binding to port for 0.0.0.0 port 1812

Solution
ps -ef | grep radius

OR

ps ef | grep free

kill -9 <PID>
Error 2:
tail -f /var/log/httpd/error_log
PHP Warning: session_start(): open(/var/lib/php/session/sess_2bf357c7717eae8f1b9159deef9c912e6, O_RDWR) failed: Permission denied (13) in /var/www/html/daloradius/dologin.php on line 41, referer: http://172.17.25.200/daloradius/login.php

Solution :
chown apache:apache var/lib/php/session


Previous
Next Post »

4 comments

Write comments
Unknown
AUTHOR
August 24, 2017 at 12:21 PM This comment has been removed by the author.
avatar
Anuradhi
AUTHOR
August 24, 2017 at 12:26 PM

I am new to freeradius. I have installed freeradius on centos-7 and planned to manage it using daloradius. After installing freeradius it was working fine and started normally by "systemctl start radiusd".freeradius is not starting and following is the error message.

"Job for radiusd.service failed because the control process exited with error code. See "systemctl status radiusd.service" and "journalctl -xe" for details."

Reply
avatar
HandreamnetVN
AUTHOR
October 21, 2017 at 10:00 PM

I am new to freeradius. I have installed freeradius on centos-7 and planned to manage it using daloradius.
But when I login daloradius I meet error "DATABASE CONNECTION ERROR".
How to fix this error, please?
thanks

Reply
avatar
Hiren Patel
AUTHOR
November 3, 2017 at 5:44 PM

I am new to freeradius. I have installed freeradius on centos-7.4 and planned to manage it using daloradius.
[root@sys1 ~]# radiusd -X
rlm_sql (sql): Opening additional connection (0), 1 of 32 pending slots used
rlm_sql_mysql: Starting connect to MySQL server
rlm_sql_mysql: Couldn't connect to MySQL server radius@localhost:radius
rlm_sql_mysql: MySQL error: Access denied for user 'radius'@'localhost' (using password: YES)
rlm_sql_mysql: Socket destructor called, closing socket
rlm_sql (sql): Opening connection failed (0)
rlm_sql (sql): Removing connection pool
/etc/raddb/mods-enabled/sql[20]: Instantiation failed for module "sql"

this error is generate so how it is solved..??//
thanks to adv...
