How to Access Supermicro Using IPMIView Utility ?
IPMI View Utility ?
What is default username and password of IPMI ?
How to Access IPMI in Browser ?


There are two method to GUI access of IPMI

  1. IPMIView Utility
  2. Web Access
Before Start Check , How to Configure IPMI - Click Here

Connectivity to the Server

Step 1:
  • Connect laptop/desktop using LAN cable to dedicated IPMI LAN port
  • Set IP address to you laptop on same range of IPMI IP & Verify by ping command
ipmitool,ipmi,ipmivies,ipmi full form,ipmitool commands,ipmi port,ipmi tool,ipmi supermicro,ipmi console,ipmi over lan,Intelligent Platform Management Interface,how to use ipmi,ipmi linux,ipmi bmc,linuxtopic
Access Server - IPMI View

For Example, Our IPMI IP ( 172.17.20.230/24 )
  • IP Address = 172.17.20.100
  • Subnet Mask = 255.255.255.0
  • Gateway = 172.17.20.1

Open Browser, best is google chrome, and access following url

https://172.17.20.230


Warning: Potential Security Risk Ahead -- Ignore This warning

Press "Advanced" Button and then Press "Accept the Risk and Continue"

ipmitool,ipmi,ipmivies,ipmi full form,ipmitool commands,ipmi port,ipmi tool,ipmi supermicro,ipmi console,ipmi over lan,Intelligent Platform Management Interface,how to use ipmi,ipmi linux,ipmi bmc,linuxtopic
IPMI View - Web Access
Note : Default Username and Password

User = ADMIN
Pass = ADMIN

After Login Success ! Screen


We can check all settings of server, get all details of server even we can controller our server with monitor using kvm console.

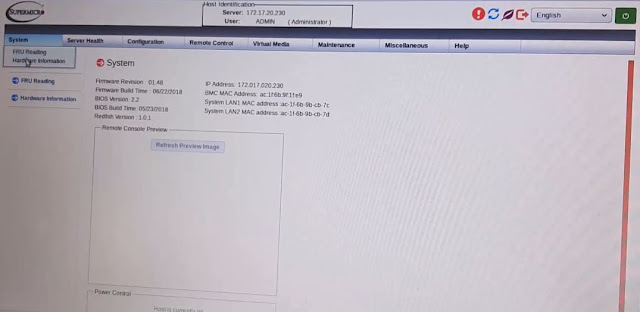

Get Hardware Information

System --> Hardware Info
ipmitool,ipmi,ipmivies,ipmi full form,ipmitool commands,ipmi port,ipmi tool,ipmi supermicro,ipmi console,ipmi over lan,Intelligent Platform Management Interface,how to use ipmi,ipmi linux,ipmi bmc,linuxtopic

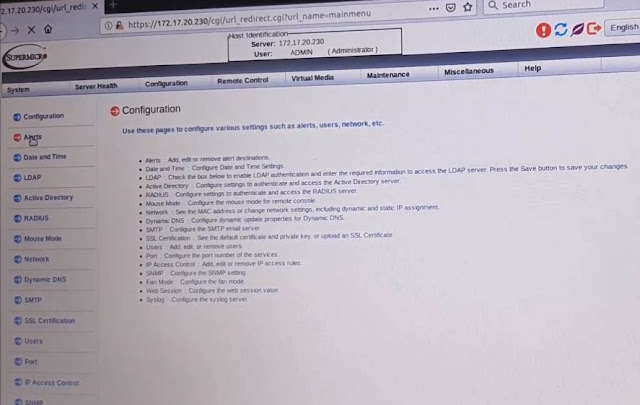

IPMI



Configuration

We can configure following :

  • alerts
  • date & time
  • network
  • hostname
  • smtp
  • SSL Certificate
  • user
  • port and more


How to Change IPMI Default Password ?
How to Add User in IPMI ?

1. Click Users Tab


Select User and Press "Modify User" Button and Update new password

We can add new user in IPMI, just press on "Add User"

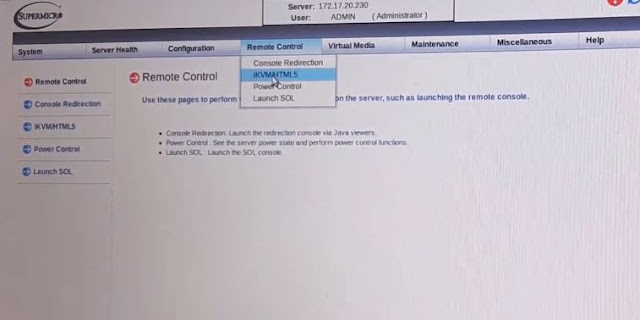

Remote Console

iKVM/HTML


Press "iKVM/HTML5" Button




Thanks
