How to Access Supermicro Using IPMIView Utility ?

IPMI View Utility ?
What is default username and password of IPMI ?



There are two method to GUI access of IPMI

  1. IPMIView Utility
  2. Web Access

Before Start Check , How to Configure IPMI - Click Here

Connectivity to the Server

Step 1:
  • Connect laptop/desktop using LAN cable to dedicated IPMI LAN port
  • Set IP address to you laptop on same range of IPMI IP & Verify by ping command

For Example, Our IPMI IP ( 172.17.20.230/24 )
  • IP Address = 172.17.20.100
  • Subnet Mask = 255.255.255.0
  • Gateway = 172.17.20.1


Download IPMIView Software on official website of Supermicro / Click here to Download
  • ftp://ftp.supermicro.com/utility/IPMIView/
Install the IPMIView Utility and Run : welcome window

ipmitool,ipmi,ipmivies,ipmi full form,ipmitool commands,ipmi port,ipmi tool,ipmi supermicro,ipmi console,ipmi over lan,Intelligent Platform Management Interface,how to use ipmi,ipmi linux,ipmi bmc,linuxtopic
IPMI View

Go to the file menu and select New -> System




Enter Following  Details Like:

System Name = Hydra
IP Address = 10.250.250.250
Description = LinuxTopic Hydra server

Press : OK

Double Click on Hydra in IPMI Domain Property

ipmitool,ipmi,ipmivies,ipmi full form,ipmitool commands,ipmi port,ipmi tool,ipmi supermicro,ipmi console,ipmi over lan,Intelligent Platform Management Interface,how to use ipmi,ipmi linux,ipmi bmc,linuxtopic

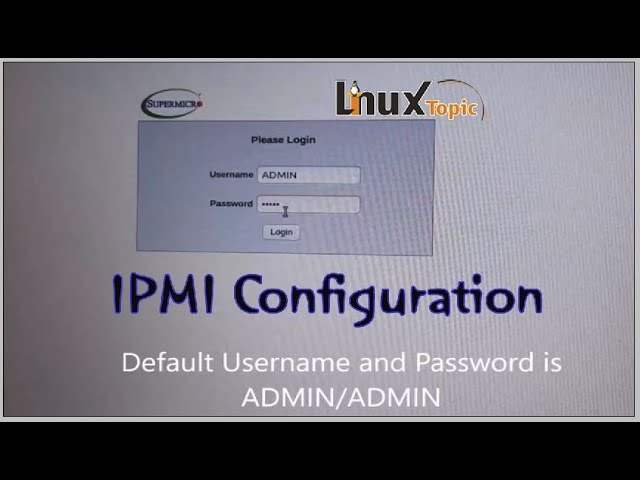

IPMI Configuration

Note : Default Username and Password

User = ADMIN
Pass = ADMIN

After Login Success ! Screen




We can check all settings of server, get all details of server even we can controller our server with monitor using kvm console.

How to Change IPMI Default Password ?

1. Click Users Tab on the Bottom
2. Click Change Password Button and Enter new password

new password :
password confirm :

press OK


Thanks
