step by step Clonezilla LIVE Boot Using ISO

step by step Clonezilla LIVE Boot Using ISO


Clonezilla LIVE Boot Using ISO - CentOS 7
Clonezilla LIVE Boot Using ISO, Grub entry for boot Clonezilla ISO, clonezilla live boot, clonezilla boot from iso, LiveCD, live boot, backup restore, recovery, grub-reboot, grub2-reboot, Grub2, ISOBoot, Unattended boot, auto recovery disk, live os, grub, efi, boot loader, unetbootin, dd

Step 1:

Download Ubuntu From "http://clonezilla.org/downloads.php"

   http://iij.dl.osdn.jp/clonezilla/67927/clonezilla-live-20170626-zesty-amd64.iso

Download: ubuntu 16.4

mkdir /live
cd /live

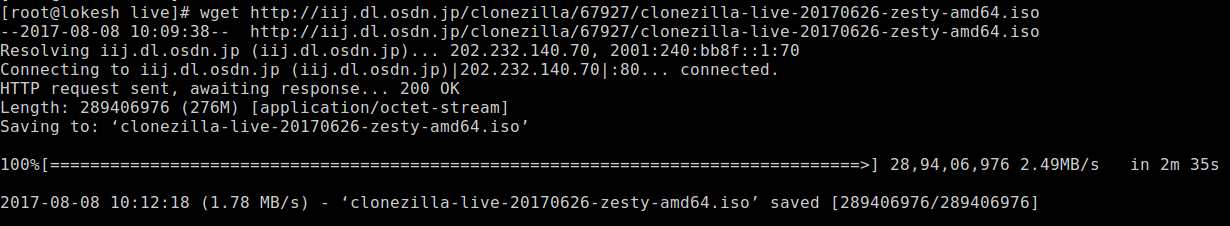

wget http://iij.dl.osdn.jp/clonezilla/67927/clonezilla-live-20170626-zesty-amd64.iso

Clonezilla LIVE Boot Using ISO, Grub entry for boot Clonezilla ISO, clonezilla live boot, clonezilla boot from iso, LiveCD, live boot, backup restore, recovery, grub-reboot, grub2-reboot, Grub2, ISOBoot, Unattended boot, auto recovery disk, live os, grub, efi, boot loader, unetbootin, dd

mv clonezilla-live-20170626-zesty-amd64.iso /boot/clonezilla.iso

Step 2:

Add Menuentry on grub.cfg

Loopback Explantion :

The loopback line must reflect the actual location of the ISO file. In the example, the ISO file is stored in the / directory

X is the drive number, starting with 0;
Y is the partition number, starting with 1
menuentry 'clonezilla' {
set isofile="/live/clonezilla.iso"
loopback loop (hd0,2)$isofile
     linux (loop)/live/vmlinuz boot=live config nolocales edd=on nomodeset noprompt ocs_live_extra_param="" keyboard-layouts="NONE" ocs_live_batch="no" locales="en_US.UTF-8" net.ifnames=0 vga=788 ip=frommedia toram=filesystem.squashfs union=overlay nosplash findiso="$isofile"
        initrd (loop)/live/initrd.img
}
sda5 would be designated as (hd0,5); disk 1 partition no 5
sdb1 would be (hd1,1); disk 2 partition no 1

Other Location Examples:

(hd0,5) /boot/$isofile , Located in the system's normal /boot partition on sda5

(hd0,6)/$isofile : Located in a separate boot partition on sda6

(hd0,7)/username/Downloads/$isofile  : Located in a separate home partition on sda7

(hd1,2)/iso/$isofile :  Located in the /iso folder of the sdb2 / partition

df -f


Here is ISO file path is /live on /sda2 , disk 1 & partatin no 2

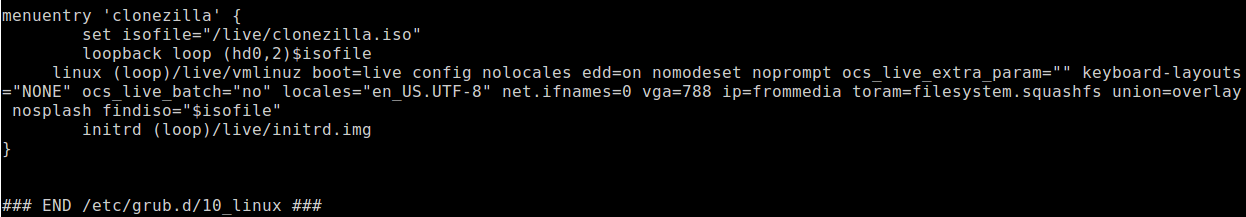

vi /boot/grub2/grub.cfg

### BEGIN /etc/grub.d/10_linux ###

………..
………..
………..
………..


### Grub Entry for boot ISO


menuentry 'clonezilla' {
   set isofile="/live/clonezilla.iso"
   loopback loop (hd0,2)$isofile
   linux (loop)/live/vmlinuz boot=live config nolocales edd=on nomodeset noprompt ocs_live_extra_param="" keyboard-layouts="NONE" ocs_live_batch="no" locales="en_US.UTF-8" net.ifnames=0 vga=788 ip=frommedia toram=filesystem.squashfs union=overlay nosplash findiso="$isofile"
   initrd (loop)/live/initrd.img
}

### END /etc/grub.d/10_linux ###


Step 3:

Run command and install

grub-reboot clonezilla

reboot

Enjoy & Now your Live Clonezilla ISO will Boot
