Graylog2 Server Configuration in CentOS7
Graylog is a free open source & powerful  log management server, log management tools, graylog remote source, graylog remote host configuration, rsyslog, graylog client configuration, full graylog2, graylog, centralised logging, open source log analysis, centralized logging open source, logs management, Open Source Log Monitoring, elasticsearch, graylog.org,

Components:

1. MongoDB – Stores the configurations and meta information.

2. Elasticsearch – Stores the log messages and offers a searching facility, nodes should have high memory as all the I/O operations are happens here.

3. GrayLog – Log parser, it collect the logs from various inputs.

File Details

Configuration           /etc/graylog/server/server.conf
Logging configuration       /etc/graylog/server/log4j2.xml
Plugins               /usr/share/graylog-server/plugin
JVM settings           /etc/default/graylog-server
Message journal files       /var/lib/graylog-server/journal
Log Files               /var/log/graylog-server/




Requirement :

Install Java
Install & configure Elasticsearch
Install MongoDB
Install & Configure Graylog2
Install & Configure rsyslog (Client) to send to graylog


Step 1 :

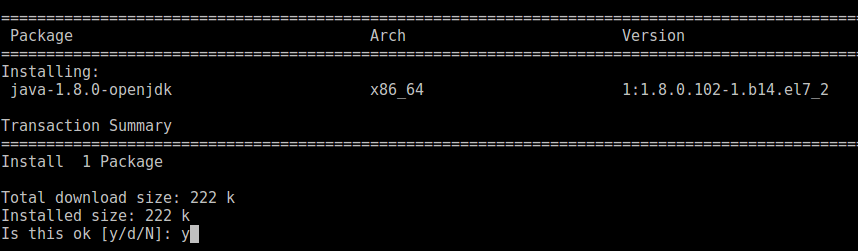

Install Java

yum install java-1.8.0-openjdk.x86_64


Verify Java

java -version


Step 2:

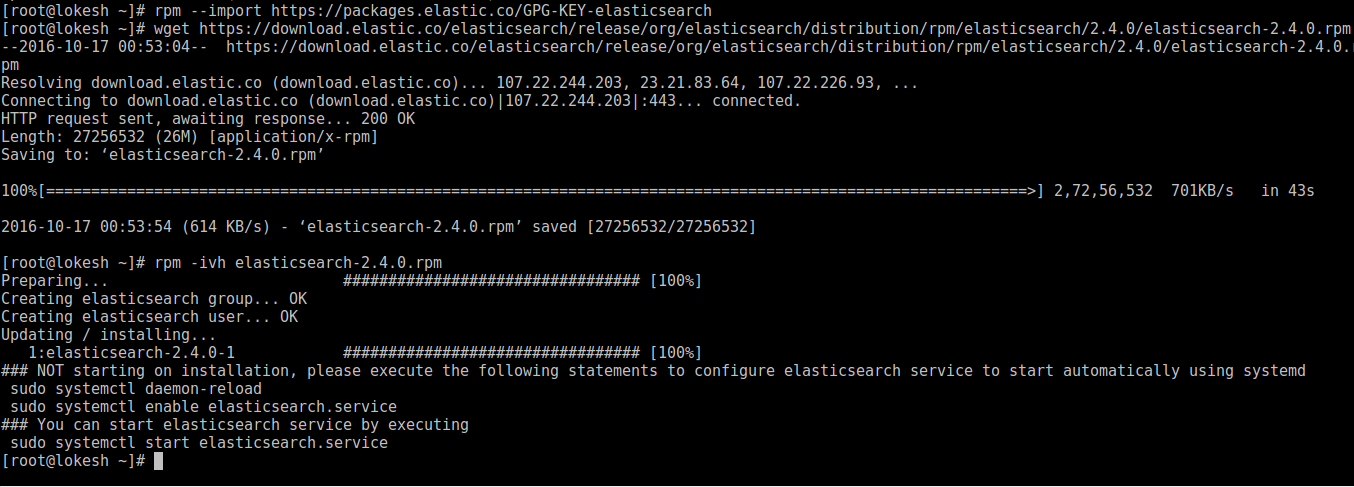

Downloading and Installing Elasticsearch

rpm --import https://packages.elastic.co/GPG-KEY-elasticsearch

wget https://download.elastic.co/elasticsearch/release/org/elasticsearch/distribution/rpm/elasticsearch/2.4.0/elasticsearch-2.4.0.rpm

rpm -ivh elasticsearch-2.4.0.rpm

Graylog is a free open source & powerful  log management server, log management tools, graylog remote source, graylog remote host configuration, rsyslog, graylog client configuration, full graylog2, graylog, centralised logging, open source log analysis, centralized logging open source, logs management, Open Source Log Monitoring, elasticsearch, graylog.org,

Open file and uncomment below line and edit cluster name

vi /etc/elasticsearch/elasticsearch.yml


# ---------------------------------- Cluster -----------------------------------
#
# Use a descriptive name for your cluster:
#
#cluster.name: my-application
cluster.name: graylogserver
#

# ---------------------------------- Network -----------------------------------
#
# Set the bind address to a specific IP (IPv4 or IPv6):
#
#network.host: 192.168.0.1
network.host: 0.0.0.0
#
# Set a custom port for HTTP:
#
http.port: 9200

# --------------------------------- Discovery ----------------------------------
#
# Pass an initial list of hosts to perform discovery when new node is started:
# The default list of hosts is ["127.0.0.1", "[::1]"]
#
#discovery.zen.ping.unicast.hosts: ["host1", "host2"]
discovery.zen.ping.unicast.hosts: ["0.0.0.0"]
#


Start elasticsearch service by executing

systemctl start elasticsearch.service

Elasticsearch service to start automatically using systemd

systemctl daemon-reloadsystemctl enable elasticsearch.service

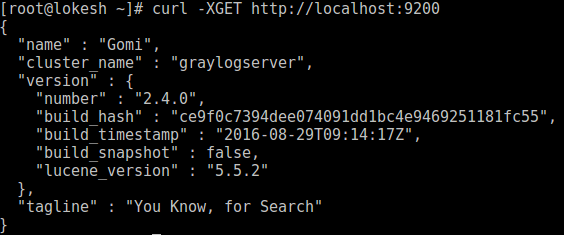

Check status

curl -XGET http://localhost:9200

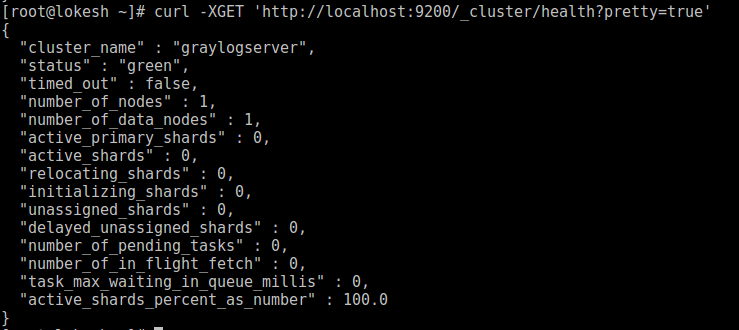

Check Health of Cluster

curl -XGET 'http://localhost:9200/_cluster/health?pretty=true'


Step 3:

Installation of  MongoDB

Create Repo file##

vim /etc/yum.repos.d/mongodb-org-3.0.repo

[mongodb-org-3.0]
name=MongoDB Repository
baseurl=http://repo.mongodb.org/yum/redhat/$releasever/mongodb-org/3.0/x86_64/
gpgcheck=0
enabled=1


yum install mongodb-org

Configure MongoDB

vi /etc/mongod.conf

# network interfaces
net:
#port: 27017
port: 27020
# bindIp: 0.0.0.0    # Listen to local interface only, comment to listen on all interfaces.

Step 4:

Create /data/ folder

mkdir /data/db -p

chmod -R 777 /data

chown -R mongod:mongod /data

Restart Service

systemctl restart mongod.service

systemctl enable mongod.service
OR
/sbin/chkconfig mongod on

Step 5:

Install & Configure Graylog2

rpm -ivh https://packages.graylog2.org/repo/packages/graylog-2.1-repository_latest.rpm

OR

Create a file named /etc/yum.repos.d/graylog.repo with the following content:

[graylog]
name=graylog
baseurl=https://packages.graylog2.org/repo/el/stable/2.1/$basearch/
gpgcheck=1
gpgkey=file:///etc/pki/rpm-gpg/RPM-GPG-KEY-graylog

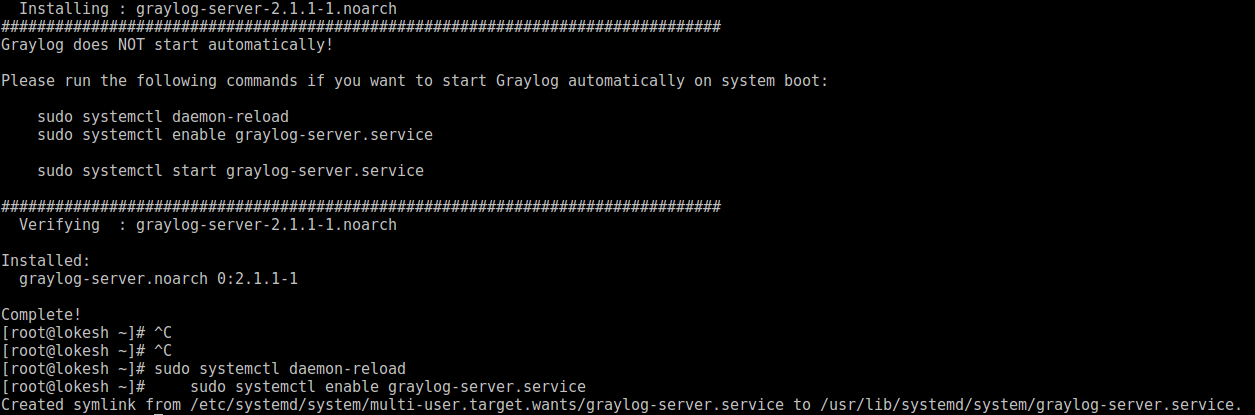

yum install graylog-server

Graylog is a free open source & powerful  log management server, log management tools, graylog remote source, graylog remote host configuration, rsyslog, graylog client configuration, full graylog2, graylog, centralised logging, open source log analysis, centralized logging open source, logs management, Open Source Log Monitoring, elasticsearch, graylog.org,

Step : 6

Get the sha265 sum of your accounts password

echo -n yourpassword | sha256sum



Configure Graylog

vi /etc/graylog/server/server.conf


# Generate one by using for example: pwgen -N 1 -s 96

password_secret = YyP89em7SxDM0NWjFSzJpcFiPXl7DrVC77Cxz17yIOxKYj


# Create one by using for example: echo -n yourpassword | shasum -a 256
# and put the resulting hash value into the following line

root_password_sha2 = b3eacd33433b31b5252351032c9b3e7a2e7aa7738d5de

# The email address of the root user.
# Default is empty
root_email = "root@yourdomain"

# The time zone setting of the root user. See http://www.joda.org/joda-time/timezones.html for a list of valid time zones.
# Default is UTC
#root_timezone = UTC
root_timezone = Asia/Kolkata

# REST API listen URI. Must be reachable by other Graylog server nodes if you run a cluster.
# When using Graylog Collectors, this URI will be used to receive heartbeat messages and must be accessible for all collectors.
#rest_listen_uri = http://localhost:9000/api/
rest_listen_uri = http://0.0.0.0:9000/api/

# Web interface listen URI.
# Configuring a path for the URI here effectively prefixes all URIs in the web interface. This is a replacement
# for the application.context configuration parameter in pre-2.0 versions of the Graylog web interface.
#web_listen_uri = http://127.0.0.1:9000/
web_listen_uri = http://0.0.0.0:9000/

# settings to be passed to elasticsearch's client (overriding those in the provided elasticsearch_config_file)
# all these
# this must be the same as for your Elasticsearch cluster
elasticsearch_cluster_name = graylog

# A comma-separated list of Elasticsearch nodes which Graylog is using to connect to the Elasticsearch cluster,
# see https://www.elastic.co/guide/en/elasticsearch/reference/2.3/modules-discovery-zen.html for details.
# Default: 127.0.0.1
#elasticsearch_discovery_zen_ping_unicast_hosts = 127.0.0.1:9300
elasticsearch_discovery_zen_ping_unicast_hosts = 0.0.0.0:9300

# MongoDB connection string
# See https://docs.mongodb.com/manual/reference/connection-string/ for details
mongodb_uri = mongodb://0.0.0.0/graylog

# Email transport
transport_email_enabled = true
transport_email_hostname = localhost
transport_email_port = 25
transport_email_use_auth = false
transport_email_use_tls = false
transport_email_use_ssl = false
transport_email_auth_username = graylog1
transport_email_auth_password = server
transport_email_subject_prefix = [graylog]
transport_email_from_email = graylog1@linuxtopic.com

# This should define the fully qualified base url to your web interface exactly the same way as it is accessed by your users.
transport_email_web_interface_url = http://172.17.20.101:9000

Step 7:

Create Graylog1 user and set password

useradd graylog1

passwd graylog1

Restart Graylog Service

systemctl restart graylog-server.service

systemctl enable graylog-server.service


Check log :

tail -f /var/log/graylog-server/server.log

Step 8:


## Access Graylog Server Using URL

http://172.17.20.100:9000


Graylog is a free open source & powerful  log management server, log management tools, graylog remote source, graylog remote host configuration, rsyslog, graylog client configuration, full graylog2, graylog, centralised logging, open source log analysis, centralized logging open source, logs management, Open Source Log Monitoring, elasticsearch, graylog.org,


Dashboard Window

Graylog is a free open source & powerful  log management server, log management tools, graylog remote source, graylog remote host configuration, rsyslog, graylog client configuration, full graylog2, graylog, centralised logging, open source log analysis, centralized logging open source, logs management, Open Source Log Monitoring, elasticsearch, graylog.org,

Step 9

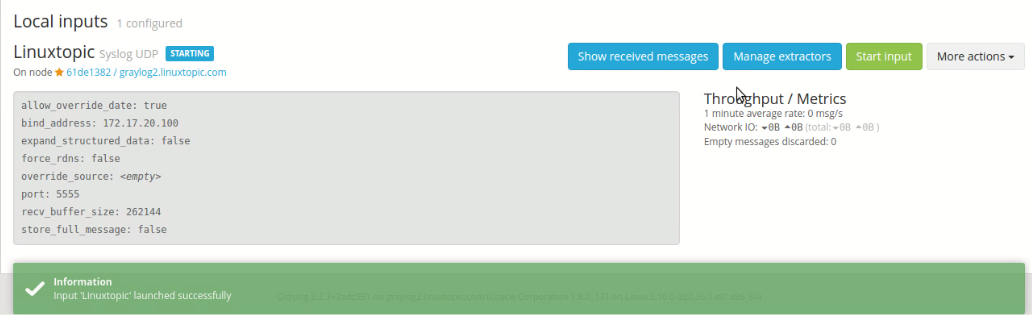

Create Input :

Go to System -> input

Graylog is a free open source & powerful  log management server, log management tools, graylog remote source, graylog remote host configuration, rsyslog, graylog client configuration, full graylog2, graylog, centralised logging, open source log analysis, centralized logging open source, logs management, Open Source Log Monitoring, elasticsearch, graylog.org,


Choose Syslog UPD from the drop down and click on Launch new input


Fill Launch new Syslog UDP input

  1. Select Node    -  /gaylog2-linuxtopic.com    # Select your node
  2. Title        - linuxtopic            # Choose Title
  3. Bind Address    - 172.17.20.100        # your graylog server ip
  4. Port        - 5555                # Enter any free port





Press “Save”


Your Input is configured.
