steps to compile & patch WPA2 Security Vulnerable to KRACK Attacks

steps to compile & patch WPA2 Security Vulnerable to KRACK Attacks


steps to compile & patch WPA2 Security Vulnerable to KRACK Attacks, KRACK, KRACK Attacks, KRACK Vulnerability, wifi security patch, Wi-Fi, KRACK Wi-Fi vulnerability, Wi-Fi WPA2 Security Vulnerable to KRACK Attacks, compile hostapd, compile hostapd 2.6, wpa, wpa2 security,
Step 1


















Install Required Packages :
apt-get update

apt-get install build-essential checkinstall pkg-config iw crda libnl-genl-3-dev libnl-3-dev libssl-dev libnfnetlink-dev libnl-route-3-dev
KRACK, KRACK Attacks, KRACK Vulnerability, wifi security patch, Wi-Fi, KRACK Wi-Fi vulnerability, Wi-Fi WPA2 Security Vulnerable to KRACK Attacks, compile hostapd, compile hostapd 2.6, wpa, wpa2 security,

Step 2

Download Source file from " https://w1.fi/hostapd/ "
cd /opt

wget https://w1.fi/releases/hostapd-2.6.tar.gz hostapd2.6.tar.gz
KRACK, KRACK Attacks, KRACK Vulnerability, wifi security patch, Wi-Fi, KRACK Wi-Fi vulnerability, Wi-Fi WPA2 Security Vulnerable to KRACK Attacks, compile hostapd, compile hostapd 2.6, wpa, wpa2 security,

Step 3

Extract hostapd & Edit .config file
tar xvf hostapd-2.6.tar.gz
Step 4

Download Security Patch from “https://w1.fi/security/2017-1/

Note: read it - https://w1.fi/security/2017-1/wpa-packet-number-reuse-with-replayed-messages.txt

cd hostapd-2.6

wget https://w1.fi/security/2017-1/rebased-v2.6-0001-hostapd-Avoid-key-reinstallation-in-FT-handshake.patch

KRACK, KRACK Attacks, KRACK Vulnerability, wifi security patch, Wi-Fi, KRACK Wi-Fi vulnerability, Wi-Fi WPA2 Security Vulnerable to KRACK Attacks, compile hostapd, compile hostapd 2.6, wpa, wpa2 security,
wget https://w1.fi/security/2017-1/rebased-v2.6-0002-Prevent-reinstallation-of-an-already-in-use-group-ke.patch
wget https://w1.fi/security/2017-1/rebased-v2.6-0003-Extend-protection-of-GTK-IGTK-reinstallation-of-WNM-.patch
wget https://w1.fi/security/2017-1/rebased-v2.6-0004-Prevent-installation-of-an-all-zero-TK.patch

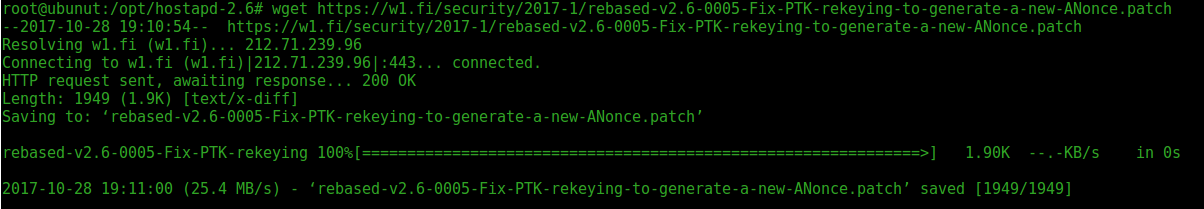

wget https://w1.fi/security/2017-1/rebased-v2.6-0005-Fix-PTK-rekeying-to-generate-a-new-ANonce.patch
wget https://w1.fi/security/2017-1/rebased-v2.6-0006-TDLS-Reject-TPK-TK-reconfiguration.patch

wget https://w1.fi/security/2017-1/rebased-v2.6-0007-WNM-Ignore-WNM-Sleep-Mode-Response-without-pending-r.patch

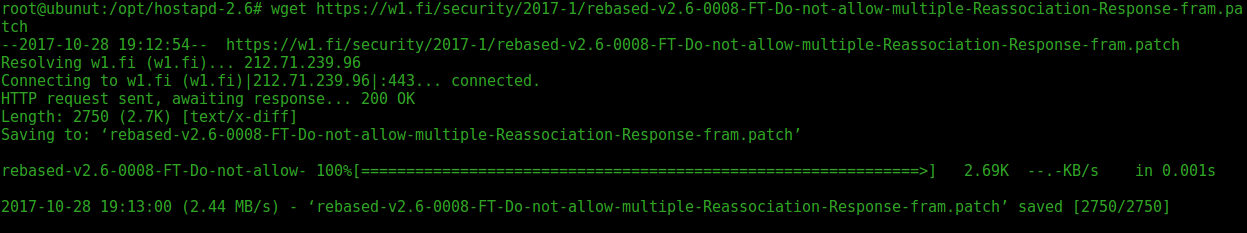

wget https://w1.fi/security/2017-1/rebased-v2.6-0008-FT-Do-not-allow-multiple-Reassociation-Response-fram.patch

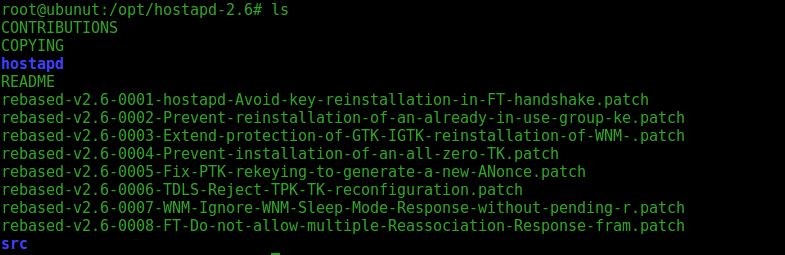

ls

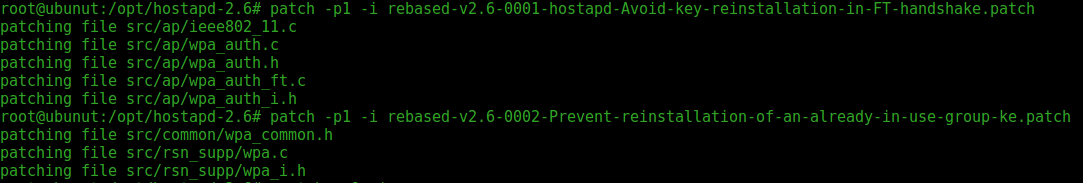

Apply patch :
patch -p1 -i rebased-v2.6-0001-hostapd-Avoid-key-reinstallation-in-FT-handshake.patch

patch -p1 -i rebased-v2.6-0002-Prevent-reinstallation-of-an-already-in-use-group-ke.patch
KRACK, KRACK Attacks, KRACK Vulnerability, wifi security patch, Wi-Fi, KRACK Wi-Fi vulnerability, Wi-Fi WPA2 Security Vulnerable to KRACK Attacks, compile hostapd, compile hostapd 2.6, wpa, wpa2 security,

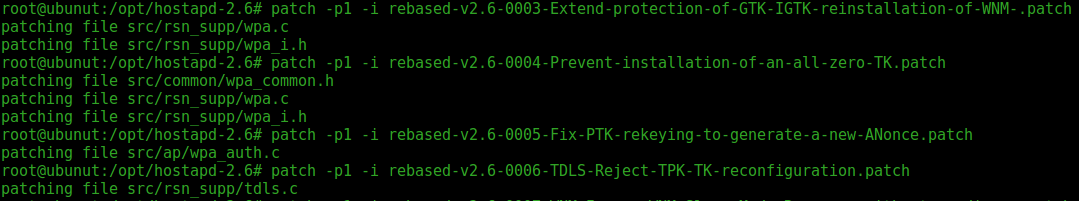

patch -p1 -i rebased-v2.6-0003-Extend-protection-of-GTK-IGTK-reinstallation-of-WNM-.patch

patch -p1 -i rebased-v2.6-0004-Prevent-installation-of-an-all-zero-TK.patch

patch -p1 -i rebased-v2.6-0005-Fix-PTK-rekeying-to-generate-a-new-ANonce.patch

patch -p1 -i rebased-v2.6-0006-TDLS-Reject-TPK-TK-reconfiguration.patch
patch -p1 -i rebased-v2.6-0008-FT-Do-not-allow-multiple-Reassociation-Response-fram.patch

Compile Hostapd :
cd hostapd
cp defconfig .config

sed -i 's/^#CONFIG_DRIVER_NL80211=y/CONFIG_DRIVER_NL80211=y/g' .config
sed -i 's/^#CONFIG_LIBNL32=y/CONFIG_LIBNL32=y/g' .config

# e
nable 802.11n and 802.11ac
sed -i 's/^#CONFIG_IEEE80211N=y/CONFIG_IEEE80211N=y/g' .config

sed -i 's/^#CONFIG_IEEE80211AC=y/CONFIG_IEEE80211AC=y/g' .config
# enable automatic channel selection
sed -i 's/^#CONFIG_ACS=y/CONFIG_ACS=y/g' .config
OR edit .config file according :

#    echo CFLAGS +=-I/usr/include/libnl3/ >> .config
# Example hostapd build time configuration
#
# This file lists the configuration options that are used when building the
# hostapd binary. All lines starting with # are ignored. Configuration option
# lines must be commented out complete, if they are not to be included, i.e.,
# just setting VARIABLE=n is not disabling that variable.
#
# This file is included in Makefile, so variables like CFLAGS and LIBS can also
# be modified from here. In most cass, these lines should use += in order not
# to override previous values of the variables.

# Driver interface for Host AP driver
CONFIG_DRIVER_HOSTAP=y

# Driver interface for wired authenticator
#CONFIG_DRIVER_WIRED=y

# Driver interface for drivers using the nl80211 kernel interface
CONFIG_DRIVER_NL80211=y

# QCA vendor extensions to nl80211
#CONFIG_DRIVER_NL80211_QCA=y

# driver_nl80211.c requires libnl. If you are compiling it yourself
# you may need to point hostapd to your version of libnl.
#
#CFLAGS += -I$<path to libnl include files>
#LIBS += -L$<path to libnl library files>

# Use libnl v2.0 (or 3.0) libraries.
#CONFIG_LIBNL20=y

# Use libnl 3.2 libraries (if this is selected, CONFIG_LIBNL20 is ignored)
CONFIG_LIBNL32=y


# Driver interface for FreeBSD net80211 layer (e.g., Atheros driver)
#CONFIG_DRIVER_BSD=y
#CFLAGS += -I/usr/local/include
#LIBS += -L/usr/local/lib
#LIBS_p += -L/usr/local/lib
#LIBS_c += -L/usr/local/lib

# Driver interface for no driver (e.g., RADIUS server only)
#CONFIG_DRIVER_NONE=y

# IEEE 802.11F/IAPP
CONFIG_IAPP=y

# WPA2/IEEE 802.11i RSN pre-authentication
CONFIG_RSN_PREAUTH=y

# PeerKey handshake for Station to Station Link (IEEE 802.11e DLS)
CONFIG_PEERKEY=y

# IEEE 802.11w (management frame protection)
CONFIG_IEEE80211W=y

# Integrated EAP server
CONFIG_EAP=y

# EAP Re-authentication Protocol (ERP) in integrated EAP server
CONFIG_ERP=y

# EAP-MD5 for the integrated EAP server
CONFIG_EAP_MD5=y

# EAP-TLS for the integrated EAP server
CONFIG_EAP_TLS=y

# EAP-MSCHAPv2 for the integrated EAP server
CONFIG_EAP_MSCHAPV2=y

# EAP-PEAP for the integrated EAP server
CONFIG_EAP_PEAP=y

# EAP-GTC for the integrated EAP server
CONFIG_EAP_GTC=y

# EAP-TTLS for the integrated EAP server
CONFIG_EAP_TTLS=y

# EAP-SIM for the integrated EAP server
#CONFIG_EAP_SIM=y

# EAP-AKA for the integrated EAP server
#CONFIG_EAP_AKA=y

# EAP-AKA' for the integrated EAP server
# This requires CONFIG_EAP_AKA to be enabled, too.
#CONFIG_EAP_AKA_PRIME=y

# EAP-PAX for the integrated EAP server
#CONFIG_EAP_PAX=y

# EAP-PSK for the integrated EAP server (this is _not_ needed for WPA-PSK)
#CONFIG_EAP_PSK=y

# EAP-pwd for the integrated EAP server (secure authentication with a password)
#CONFIG_EAP_PWD=y

# EAP-SAKE for the integrated EAP server
#CONFIG_EAP_SAKE=y

# EAP-GPSK for the integrated EAP server
#CONFIG_EAP_GPSK=y
# Include support for optional SHA256 cipher suite in EAP-GPSK
#CONFIG_EAP_GPSK_SHA256=y

# EAP-FAST for the integrated EAP server
# Note: If OpenSSL is used as the TLS library, OpenSSL 1.0 or newer is needed
# for EAP-FAST support. Older OpenSSL releases would need to be patched, e.g.,
# with openssl-0.9.8x-tls-extensions.patch, to add the needed functions.
#CONFIG_EAP_FAST=y

# Wi-Fi Protected Setup (WPS)
#CONFIG_WPS=y
# Enable UPnP support for external WPS Registrars
#CONFIG_WPS_UPNP=y
# Enable WPS support with NFC config method
#CONFIG_WPS_NFC=y

# EAP-IKEv2
#CONFIG_EAP_IKEV2=y

# Trusted Network Connect (EAP-TNC)
#CONFIG_EAP_TNC=y

# EAP-EKE for the integrated EAP server
#CONFIG_EAP_EKE=y

# PKCS#12 (PFX) support (used to read private key and certificate file from
# a file that usually has extension .p12 or .pfx)
CONFIG_PKCS12=y

# RADIUS authentication server. This provides access to the integrated EAP
# server from external hosts using RADIUS.
#CONFIG_RADIUS_SERVER=y

# Build IPv6 support for RADIUS operations
CONFIG_IPV6=y

# IEEE Std 802.11r-2008 (Fast BSS Transition)
#CONFIG_IEEE80211R=y

# Use the hostapd's IEEE 802.11 authentication (ACL), but without
# the IEEE 802.11 Management capability (e.g., FreeBSD/net80211)
#CONFIG_DRIVER_RADIUS_ACL=y

# IEEE 802.11n (High Throughput) support
CONFIG_IEEE80211N=y

# Wireless Network Management (IEEE Std 802.11v-2011)
# Note: This is experimental and not complete implementation.
#CONFIG_WNM=y

# IEEE 802.11ac (Very High Throughput) support
CONFIG_IEEE80211AC=y

# Remove debugging code that is printing out debug messages to stdout.
# This can be used to reduce the size of the hostapd considerably if debugging
# code is not needed.
#CONFIG_NO_STDOUT_DEBUG=y

# Add support for writing debug log to a file: -f /tmp/hostapd.log
# Disabled by default.
#CONFIG_DEBUG_FILE=y

# Add support for sending all debug messages (regardless of debug verbosity)
# to the Linux kernel tracing facility. This helps debug the entire stack by
# making it easy to record everything happening from the driver up into the
# same file, e.g., using trace-cmd.
#CONFIG_DEBUG_LINUX_TRACING=y

# Remove support for RADIUS accounting
#CONFIG_NO_ACCOUNTING=y

# Remove support for RADIUS
#CONFIG_NO_RADIUS=y

# Remove support for VLANs
#CONFIG_NO_VLAN=y

# Enable support for fully dynamic VLANs. This enables hostapd to
# automatically create bridge and VLAN interfaces if necessary.
#CONFIG_FULL_DYNAMIC_VLAN=y

# Use netlink-based kernel API for VLAN operations instead of ioctl()
# Note: This requires libnl 3.1 or newer.
#CONFIG_VLAN_NETLINK=y

# Remove support for dumping internal state through control interface commands
# This can be used to reduce binary size at the cost of disabling a debugging
# option.
#CONFIG_NO_DUMP_STATE=y

# Enable tracing code for developer debugging
# This tracks use of memory allocations and other registrations and reports
# incorrect use with a backtrace of call (or allocation) location.
#CONFIG_WPA_TRACE=y
# For BSD, comment out these.
#LIBS += -lexecinfo
#LIBS_p += -lexecinfo
#LIBS_c += -lexecinfo

# Use libbfd to get more details for developer debugging
# This enables use of libbfd to get more detailed symbols for the backtraces
# generated by CONFIG_WPA_TRACE=y.
#CONFIG_WPA_TRACE_BFD=y
# For BSD, comment out these.
#LIBS += -lbfd -liberty -lz
#LIBS_p += -lbfd -liberty -lz
#LIBS_c += -lbfd -liberty -lz

# hostapd depends on strong random number generation being available from the
# operating system. os_get_random() function is used to fetch random data when
# needed, e.g., for key generation. On Linux and BSD systems, this works by
# reading /dev/urandom. It should be noted that the OS entropy pool needs to be
# properly initialized before hostapd is started. This is important especially
# on embedded devices that do not have a hardware random number generator and
# may by default start up with minimal entropy available for random number
# generation.
#
# As a safety net, hostapd is by default trying to internally collect
# additional entropy for generating random data to mix in with the data
# fetched from the OS. This by itself is not considered to be very strong, but
# it may help in cases where the system pool is not initialized properly.
# However, it is very strongly recommended that the system pool is initialized
# with enough entropy either by using hardware assisted random number
# generator or by storing state over device reboots.
#
# hostapd can be configured to maintain its own entropy store over restarts to
# enhance random number generation. This is not perfect, but it is much more
# secure than using the same sequence of random numbers after every reboot.
# This can be enabled with -e<entropy file> command line option. The specified
# file needs to be readable and writable by hostapd.
#
# If the os_get_random() is known to provide strong random data (e.g., on
# Linux/BSD, the board in question is known to have reliable source of random
# data from /dev/urandom), the internal hostapd random pool can be disabled.
# This will save some in binary size and CPU use. However, this should only be
# considered for builds that are known to be used on devices that meet the
# requirements described above.
#CONFIG_NO_RANDOM_POOL=y

# Should we use poll instead of select? Select is used by default.
#CONFIG_ELOOP_POLL=y

# Should we use epoll instead of select? Select is used by default.
#CONFIG_ELOOP_EPOLL=y

# Should we use kqueue instead of select? Select is used by default.
#CONFIG_ELOOP_KQUEUE=y

# Select TLS implementation
# openssl = OpenSSL (default)
# gnutls = GnuTLS
# internal = Internal TLSv1 implementation (experimental)
# none = Empty template
#CONFIG_TLS=openssl

# TLS-based EAP methods require at least TLS v1.0. Newer version of TLS (v1.1)
# can be enabled to get a stronger construction of messages when block ciphers
# are used.
#CONFIG_TLSV11=y

# TLS-based EAP methods require at least TLS v1.0. Newer version of TLS (v1.2)
# can be enabled to enable use of stronger crypto algorithms.
#CONFIG_TLSV12=y

# If CONFIG_TLS=internal is used, additional library and include paths are
# needed for LibTomMath. Alternatively, an integrated, minimal version of
# LibTomMath can be used. See beginning of libtommath.c for details on benefits
# and drawbacks of this option.
#CONFIG_INTERNAL_LIBTOMMATH=y
#ifndef CONFIG_INTERNAL_LIBTOMMATH
#LTM_PATH=/usr/src/libtommath-0.39
#CFLAGS += -I$(LTM_PATH)
#LIBS += -L$(LTM_PATH)
#LIBS_p += -L$(LTM_PATH)
#endif
# At the cost of about 4 kB of additional binary size, the internal LibTomMath
# can be configured to include faster routines for exptmod, sqr, and div to
# speed up DH and RSA calculation considerably
#CONFIG_INTERNAL_LIBTOMMATH_FAST=y

# Interworking (IEEE 802.11u)
# This can be used to enable functionality to improve interworking with
# external networks.
CONFIG_INTERWORKING=y

# Hotspot 2.0
CONFIG_HS20=y

# Enable SQLite database support in hlr_auc_gw, EAP-SIM DB, and eap_user_file
#CONFIG_SQLITE=y

# Enable Fast Session Transfer (FST)
CONFIG_FST=y

# Enable CLI commands for FST testing
CONFIG_FST_TEST=y

# Testing options
# This can be used to enable some testing options (see also the example
# configuration file) that are really useful only for testing clients that
# connect to this hostapd. These options allow, for example, to drop a
# certain percentage of probe requests or auth/(re)assoc frames.
#
CONFIG_TESTING_OPTIONS=y

# Automatic Channel Selection
# This will allow hostapd to pick the channel automatically when channel is set
# to "acs_survey" or "0". Eventually, other ACS algorithms can be added in
# similar way.
#
# Automatic selection is currently only done through initialization, later on
# we hope to do background checks to keep us moving to more ideal channels as
# time goes by. ACS is currently only supported through the nl80211 driver and
# your driver must have survey dump capability that is filled by the driver
# during scanning.
#
# You can customize the ACS survey algorithm with the hostapd.conf variable
# acs_num_scans.
#
# Supported ACS drivers:
# * ath9k
# * ath5k
# * ath10k
#
# For more details refer to:
# http://wireless.kernel.org/en/users/Documentation/acs
#
CONFIG_ACS=y

# Multiband Operation support
# These extentions facilitate efficient use of multiple frequency bands
# available to the AP and the devices that may associate with it.
CONFIG_MBO=y

# Client Taxonomy
# Has the AP retain the Probe Request and (Re)Association Request frames from
# a client, from which a signature can be produced which can identify the model
# of client device like "Nexus 6P" or "iPhone 5s".
#CONFIG_TAXONOMY=y


Step 4
Compile & Create package file
make

ln -s /opt/hostapd-2.6/hostapd/hostapd /usr/sbin/hostapd

hostapd -v



Previous
Next Post »
